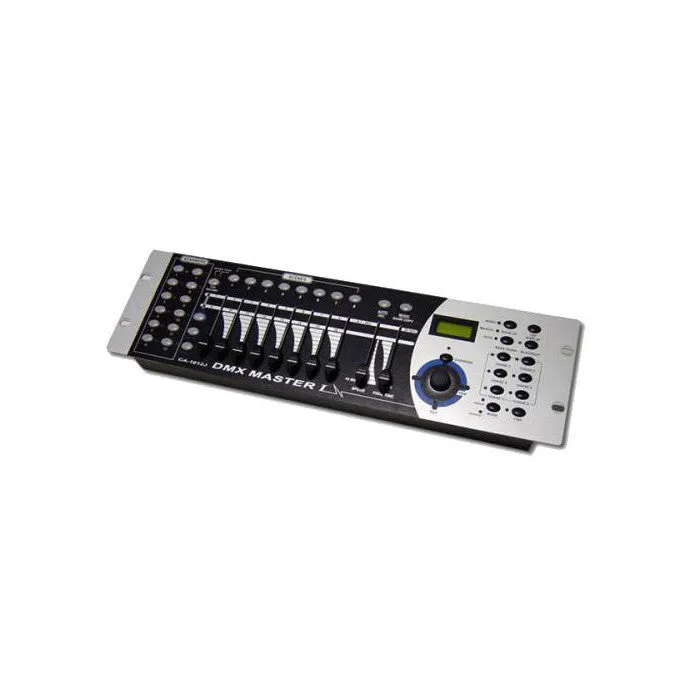

Optima Lighting Dmx Master I controller 1216J -
DMX MASTER I Controller allows you to program 12 scanners of 16 DMX channels, 30 banks of 8 programmable scenes, 6 chases of 240 programmed scenes using 8 faders and other function buttons. With the use of two jog wheels, you may easily control the Pan or Tilt of the scanners. To tailor your special effect lighting, this unit enables you to Assign or Reverse the DMX channels. In addition, two units can set up communication so that they can send or receive file dump. Features:- 192 DMX channels.- 30 banks of 8 programmable scenes.- All data can be sent or received between two units- Auto programs(scenes and chases) under control by Speed (or Tap Sync) and Fade Time sliders- Fade Time/Assign Fade Time- The scanners under control by Pan and Tilt jog wheels- Reverse DMX channels causing the faders to control the output reversely- Preview assigned or reversed DMX channels- 8 CH./16 CH. mode for Assigned or Reversed DMX channels- Blackout master- Manual override- Built-in microphone for Music triggering- LCD display- DMX polarity select- Power failure memory
Power failure memory, Manual override ... and more! DMX Master 1 is an affordable solution for controlling DMX products. Control up to 192 DMX channels, 12 individual fixture channels. Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture. Fixtures with less than 16 DMX channels may be combined on 1 Channel Fader. Record up to 6 programmable chases with fade times and different speeds. 8 individual faders provide easy programmability for intelligent lighting or Dimmer Packs.Features: Control up to 192 DMX channels - 30 Banks of 8 scenes - Strobe control button - Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture - Fixtures with less than 16 DMX channels may be combined on 1 Channel Fader - Record up to 6 programmable chases with fade times and different speeds - MIDI controllable - DMX-512 3 pin XLR signal - Built-in Microphone - Remote control: Blackout controlled by MIDI input signal - 3 r.m. spaces.
SPECIFICATIONS: NUMBER OF FADDERS: 8 - NUMBER OF SCENES 8 - PROTOCOL DMX - POWER DC 9V-12V, 220 mA min. power supply included 120V operation - LENGTH (IN): 22.5 - WIDTH (IN): 7 - HEIGHT (IN): 4.5 - WEIGHT (LBS): 6 - WARRANTY: 1 Year Manufacturer warranty
Quantity Per Case: 2
