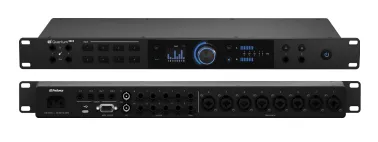

Name: Presonus QUANTUM HD8 Recording Interface
SKU: 612691

Product Details ＋

The Culmination Of 30 Years Of Innovation

The HD 8 features eight newly redesigned high-definition MAX-HD mic preamps with 75 dB of gain – making it ideally suited for today’s most popular microphones. Guitarists and bassists will love the instrument inputs, which were co-developed with Fender engineers. An Auto Gain button sets the perfect gain level for your microphones and instruments. You also get two re-amp outputs so you can send audio from your DAW to your guitar or bass amp and re-record it to experiment with different amps, pedals, and mic placements. An illuminated push encoder provides flexible control over gain level and output volume, and bright and responsive LED metering provides easy visual feedback for your outputs – making it great for self-produced recording.

High Performance Signal Flow

Our custom low-latency driver provides exceptionally low audio latencies when recording, and high-performance converters with 124 dB dynamic range let you hear and capture audio with stunning clarity and fidelity.

All-New MAX-HD Mic Preamps

The Quantum HD 8 features eight newly designed mic preamps with 75 dB of gain. Our high-definition MAX-HD preamps are transparent, low-noise, and digitally-controlled analog, making them ideally suited to today’s most popular microphones.

Co-Developed With Fender®

Built by the best ears in the business, guitarists and bassists will love the instrument inputs, co-developed with Fender engineers – industry experts who designed them specifically for guitar and bass.

Professional Recording Software Included

Leap into 12 months of Studio One add-ons, exclusive content, and tools, plus a perpetual license to Studio One Professional Edition.

Auto Gain

An Auto Gain button sets the perfect gain level for your microphones
and instruments, so you get the perfect take every time.

Re-Amp Outputs

Re-amp audio directly from your DAW and use amps and effects to sculpt your sounds. Send audio from your DAW to your guitar or bass amp and re-record it to experiment
with different amps, pedals, and mic placements.

Universal Control App

Quantum works on any mobile or desktop device, so you’re ready to record whenever inspiration strikes – whether on your phone, tablet, or in your home studio. Critical preamp functions like

Features

26 x 30, 32-bit / 192 kHz USB-C Audio Interface
High-performance converters with 124 dB dynamic range let you hear and capture audio with stunning clarity and fidelity.
A custom low-latency driver provides exceptionally low audio latencies when recording.
Eight all-new, next-generation PreSonus MAX-HD preamps provide transparency and accuracy across the frequency range with 75 dB of gain to maximize the performance of today’s most popular microphones for modern recording and broadcast.
Discreet phantom power means consistent, full power for microphones that require it, so you’ll get the most from your high-performance studio microphones.
2 Re-amp outputs let you send audio from your DAW to your favorite outboard gear and record it again so you can experiment with different amps, pedals, and mic placement to get the exact sound you want without cutting multiple takes.
Control your Quantum HD 8 right from Studio One and the Universal Control app, in addition to hardware, so you can adjust preamp gain, toggle phantom power, channel settings, and more without looking away from your recording session. Perfect for dialing in optimal gain staging.
A full-color, high-resolution screen lets you keep an eye on your input and output meters while an illuminated push encoder provides fast, intuitive control over channel and output settings.
16 channels of ADAT Optical input (up to 48 kHz) plus stereo S/ PDIF I/O make connecting your digital gear fast and easy.
2 balanced ¼-inch TRS main outputs plus 8 balanced ¼-inch TRS line outputs and 2 high-power headphone outputs give you flexible monitoring, while built-in speaker switching allows you to check your mix on multiple sets of studio monitors.
DSP monitor mixer plus loopback audio make creating monitor and streaming mixes quick and easy

Specifications

Inputs and Outputs

Microphone Inputs 8
Guitar Inputs 2
Line Inputs 8
S/PDIF Input 1
Optical Input 2
MIDI Input 1
Monitor Outputs (DC coupled) 2
Line Outputs (DC coupled) 8
Re-Amp Outputs 2
S/PDIF Output 1
Optical Output 2
MIDI Output 1
Headphone Outputs 2
USB-C ports 1
AD / DA Conversion
Supported Sample Rates 44.1, 48, 88.2, 96, 176.4, 192
Bit Depth 32

Analog I/O

Inputs
Microphone (CH 1 - 8)
Connector Type 8x Combo-style, XLR / TRS
Max Input 18 dBu (balanced, minimum gain)
Gain Range 0 dB to 75 dB
Frequency Response 20 Hz to 20 kHz, /- 0.1 dB
(unity gain, reference 1 kHz)
Dynamic Range 116 dB (A-weighted, minimum gain)
THD N 0.002% (1 kHz, minimum gain)
EIN -130 dBu (max gain, 150 Ohms,
20 kHz BW, A-weighted)
Input Impedance 1600 Ohms
Line In (CH 1 - 8)
Connector Type 8x Combo-style, XLR / TRS
Max input level 18 dBu (balanced, minimum gain)
Frequency Response 20 Hz to 20 kHz, /- 0.1 dB
(unity gain, reference 1 kHz)
Dynamic Range 118 dB (A-weighted, minimum gain)
THD N 0.001% (1 kHz, minimum gain)
Input Impedance 10K Ohms
Digital Trim -10 to 10 dB
Instrument In (Ch 1 - 2)
Connector Type 2 x 1/4-inch Female
Gain Range -7 dB to 68 dB
Max input level 21 dBu (unbalanced, minimum gain)
Frequency Response 20 Hz to 20 kHz, /- 0.1 dB
(unity gain, reference 1 kHz)
Dynamic Range 111 dB (A-weighted, minimum gain)
THD N 0.003% (1 kHz, minimum gain)
Input Impedance 1M Ohms
Outputs
Main Out (CH 1 - 2)
Connector Type 2x 1/4-inch Female, TRS
Max Output Level 18 dBu (Balanced)
Frequency Response 20 Hz to 20 kHz, /- 0.2 dB
(unity gain, reference 1 kHz)
Dynamic Range 123 dB (A-weighted)
THD N 0.001% (1 kHz, 4 dBu)
Output Impedance 51 Ohms
Trim Range -inf dB to 0 dB
Line Out (Ch 3 - 10)
Connector Type 8x 1/4-inch Female, TRS
Max Output Level 18 dBu (Balanced)
Frequency Response 20 Hz to 20 kHz, /- 0.2 dB
(unity gain, reference 1 kHz)
Dynamic Range 123 dB (A-weighted)
THD N 0.001% (1 kHz, 4 dBu)
Output Impedance 51 Ohms
Trim Range -inf dB to 0 dB
Re-Amp Out (Ch 11 - 12)
Connector Type 2x 1/4-inch Female, TRS
Max Output Level 4 dBu (Balanced)
Frequency Response 20 Hz to 20 kHz, /- 0.3 dB
(unity gain, reference 1 kHz)
Dynamic Range 117 dB (A-weighted)
THD N 0.001% (1 kHz, 4 dBu)
Output Impedance 100 Ohms
Trim Range -inf dB to 0 dB
Headphone Out (1 - 2)
Connector Type 2x 1/4-inch Female, TRS Stereo
Max Output Level 11 dBu (50 Ohms)
Frequency Response 20 Hz to 20 kHz, /- 0.3 dB
(unity gain, reference 1 kHz)
Dynamic Range 118 dB (A-weighted)
THD N 0.001% (1 kHz)
Output Impedance 33 Ohms
Trim Rang -inf dB to 0 dB
are the property of their respective holders. All specifications subject to change without notice. 20240308
